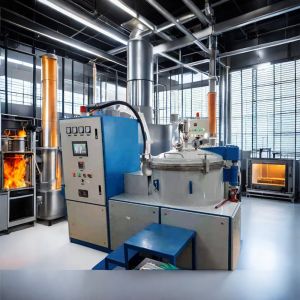

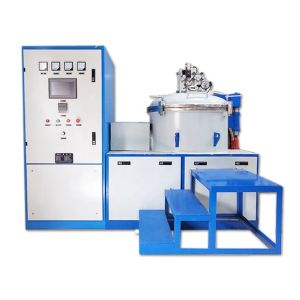

China Eco-friendly Graphitization Furnace with Water Cooling System and Digital Display for High Temperature Applications wholesale

Eco-friendly Graphitization Furnace with Water Cooling System and Digital Display for High Temperature Applications

Ask Latest Price

Video Channel

Place of Origin :Hunan, China

Brand Name :OEM

MOQ :1

Price :$52,000

Voltage :380V

Weight :2 T

Ultimate temperature :≤3200℃

Common temperature :Normal Temperature -3000℃

High temperature volume :Φ 100*150mm, Φ 200*300mm, Φ 300*500mm

Temperature uniformity :≤±10℃

Temperature measurement :Far infrared optical temperature measurement (double connector automatic switch)

Temperature measurement accuracy :0.2~ 0.75％

Temperature control :Program control and manual control

Temperature control precision :±1℃

Heating rate :80℃/min Empty furnace, depending on the volume of high temperature zone and furnace structure

Power Supply :IGB control, thyristor control

Core components :PLC

Cooling system :Internal circulation pure water cooling system, digital flow monitoring system

Control system :Comprehensive PLC water, electricity, gas automatic control and protection system

Contact Now

Add to Cart

View Product Description

Products Description

[Usage] :It is used for high temperature treatment and graphitization of carbon structural parts (products), C/C composite
products, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and
melted in carbon environment.

Experimental graphitization furnace

[Usage] :It is used for high temperature treatment and graphitization of carbon structural parts (products), C/C composite
products, carbon fiber products, sintering graphitization of carbon fiber filament and other materials that can be sintered and
melted in carbon environment.

Features

(1) Can reach 3200℃, the common temperature of 3000℃ high temperature furnace body, to
meet the sintering and graphitization of various materials.
(2) Using digital display intelligent temperature control system, automatic, high precision temperature measurement and
temperature control process, the system can be heated according to the given temperature curve, and can store a total of 40 200 sections of different process heating curve.
(3) Adopt internal circulation pure water cooling system, digital flow monitoring system;
(4) Comprehensive PLC water, electricity, gas automatic control and protection system.

Product parameter:

Ultimate temperature	≤3200℃
The commonly used temperature	Normal Temperature -3000℃
High temperature volume	Φ 100150mm, Φ 200300mm, Φ 300*500mm
Working atmosphere in furnace	Working atmosphere in furnace
Temperature uniformity	≤±10℃
Temperature measurement	Far infrared optical temperature measurement (double connector automatic switch)
Temperature measurement accuracy	0.2~ 0.75％
Temperature control	Program control and manual control
Temperature control precision	±1℃
Limiting rate of heating	80℃/min Empty furnace, depending on the volume of high temperature zone and furnace structure
Power Supply	IGB control, thyristor control

Advantage 1:

Absorb foreign temperature measurement, temperature control technology, intelligence, new material technology and furnace design technology.

Advantage 2:

Suitable for high temperature treatment of materials (carbonization, graphitization, high temperature
degassing, impurity removal, etc.) under vacuum or gas protection.

Our company philosoph:

We are not your supplier,but your parter and supply the whole thermal treatment furnace solutions with strong R&D research team、stable supply chain with 14+ years experience under the strict ISO9001:2015 quality management system.

The State Intellectual Property Office of the People's Republic of China (SIPO), in accordance with the Patent Law of the People's Republic of China, examined and granted our patent rights:

Patent for high temperature graphitization furnace:

Patent for high temperature vacuum hot pressure furnace:

Patent for high temperature continuous furifing graphitization furnace:

Patent for carbonization sintering furnace:

Patent for bottom discharge graphitization furnace:

Patent for carbon fiber continuous furnace

Production process

Customer Photos

Our logistics system is all around the world.

Customer Photos

Pre-sale and after-sale service

FAQ

Are you a factory or trading company?

Q: Are you a factory or trading company?

A:Yes,we are China leading high-temperature vacuum furnace manufacturer 14+years,granted with many patent certifications in the domestic market.

Do you have customization or OEM service?

Q: Do you have customization or OEM service??

A:Yes,we have powerful R&D team and high-tech equipment.So we can not only supply the regular model,but also the customizable furnace as the repuirment of our clients.

What's your advantages?

Q:What's your advantages?

A:Quick response to your enquiry

High quality control

Stable supply chain in the domestic maket

Timely delivery

Excellent after-sales service,we can dispatch our engineer to the customer city for installation and debugging.
